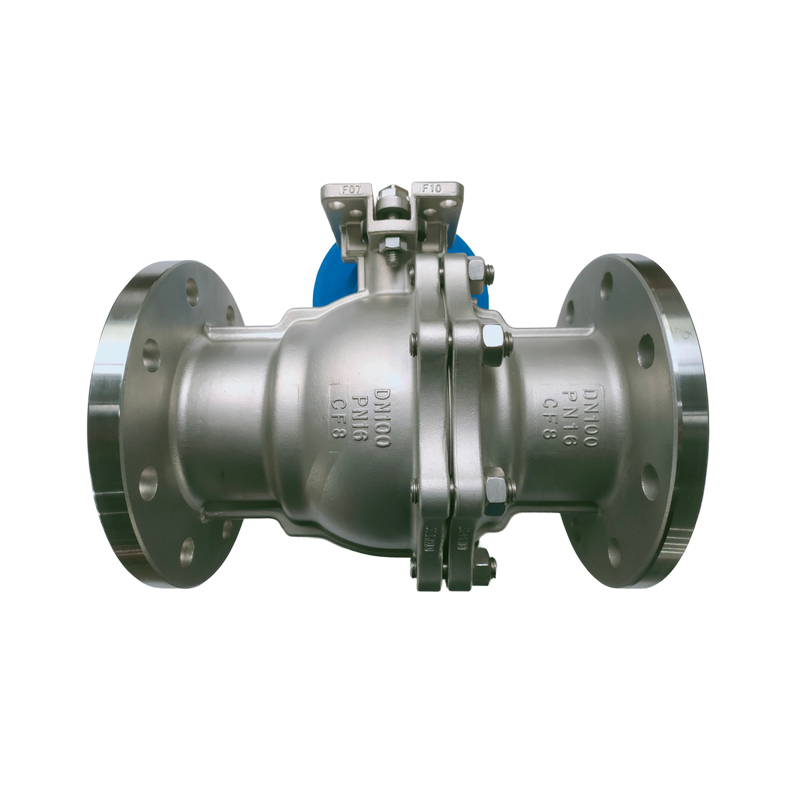

High Platform Flange Ball Valve stainless steel

Performance Features

• Excellent Sealing Performance: The valve has a tight and reliable seal, which can effectively prevent fluid leakage. The sealing surface material is often made of plastic, such as PTFE, which has good sealing performance and has been widely used in vacuum systems.
• Low Fluid Resistance: The high platform ball valve has a small flow resistance, and its resistance coefficient is equal to that of the pipe section of the same length.
• Simple Structure and Easy Maintenance: The valve has a simple structure, small size, and light weight. The sealing ring is generally movable, which is convenient for disassembly and replacement.
• Fast Opening and Closing: It only needs to rotate 90° from full open to full closed, which is convenient for long-distance control.

Advantages

• Convenient Actuator Installation: The high platform design allows for direct installation of the actuator, eliminating the need for a separate bracket.
• Strong Sealing Performance: The valve has excellent sealing performance, which can effectively prevent fluid leakage and ensure the normal operation of the system.
• Wide Application Range: The valve can be used in a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be used from high vacuum to high pressure.
• Long Service Life: The valve has a long service life due to its excellent corrosion-resistant shell and smooth components that minimize friction.

Application Scenarios

• Petroleum and Chemical Industry: The high platform flange ball valve is widely used in the petroleum and chemical industry for controlling the flow of various media, such as oil, gas, and chemicals.
• Urban Water Supply and Drainage: It is also used in urban water supply and drainage systems for controlling the flow of water and wastewater.
• Power Generation Plants: These valves are used in power plants, especially in boiler feedwater systems, where elevated installations are common. They are used for controlling the flow of water, steam, and condensate in various stages of the power generation process.
• Water and Wastewater Treatment Plants: High platform flange ball valves are used in water and wastewater treatment plants where the valves need to be installed at higher levels, such as on elevated tanks or platforms. They are used for controlling the flow of water, chemicals, and other fluids in different treatment processes.

Technical Specifications

• Size Range: The valve is available in sizes ranging from DN15 to DN200.
• Pressure Rating: The valve can withstand a pressure rating of 1000 WOG.
• Material: The valve body is usually made of stainless steel, such as SS304 or SS316.
• End Connection: The valve has a flange end connection, which makes it easy to install and connect to the pipeline.
• Design Standard: ASME B16.34, GB/T12237, JISB2071.
• Inspection Standard: API598, GB/T13927, JISB2003.
• Application Medium: Water, sewage, gas.
• Application Temperature: 0-150℃.

Maintenance

• Regular Inspection: Regularly inspect the valve for any signs of wear or damage, and replace any worn or damaged parts in a timely manner.
• Lubrication: Lubricate the valve stem and other moving parts regularly to ensure smooth operation.
• Cleaning: Clean the valve cavity and other parts regularly to remove any dirt or debris.
• Sealing Surface Maintenance: Check the sealing surface of the valve regularly and repair or replace it if necessary.
