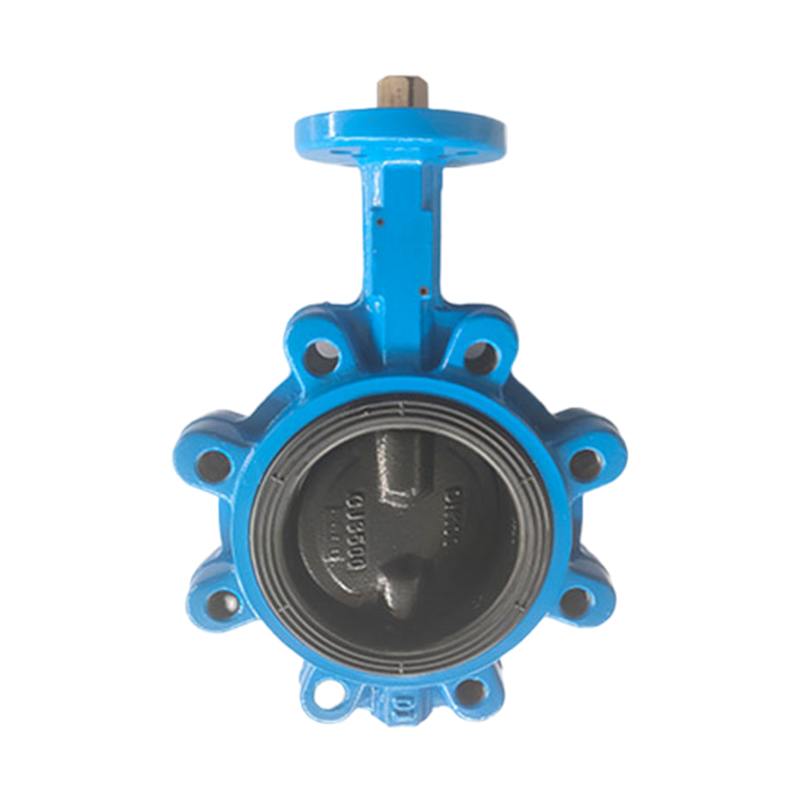

Lug Butterfly Valve

Performance Features

• Excellent Sealing Performance: Lug Butterfly Valves have good sealing performance, which can effectively prevent fluid leakage and ensure the normal operation of the pipeline system.
• High Flow Capacity: The design of the valve allows for a high flow capacity, minimizing pressure drops across the valve, which is beneficial for improving the efficiency of fluid transportation.
• Good Throttling Function: By adjusting the degree of rotation of the disc, Lug Butterfly Valves can be used for throttling flow, allowing for precise control in applications requiring variable flow rates.
• High Pressure Resistance: Lug Butterfly Valves can withstand high pressure, making them suitable for use in high-pressure pipeline systems.

Advantages

• Easy Installation: The threaded lugs on Lug Butterfly Valves allow for easy bolting directly to the flanges, making installation straightforward.
• Space Saving: Their compact design occupies less space compared to gate valves, making them suitable for confined spaces.
• Cost-Effective: Generally, Lug Butterfly Valves are less expensive than other types of valves while providing reliable service.
• Lightweight: Compared to traditional gate or ball valves, Lug Butterfly Valves are significantly lighter, easing the burden on pipelines.
• Versatile: They can handle a wide range of fluids and are used in various applications, including water, oil, and gas.
• Minimal Maintenance: With fewer moving parts, Lug Butterfly Valves typically require less maintenance than complex valve types.

Application Scenarios

• Water Treatment Plants: Lug Butterfly Valves are extensively used for controlling water flow in various stages from intake to distribution. Their reliable sealing and low-pressure drop characteristics make them ideal for both potable and wastewater applications.
• HVAC Systems: In heating, ventilation, and air conditioning systems, Lug Butterfly Valves help control the flow of air or water in multi-zone applications, offering precise flow control and efficient operation.
• Food and Beverage Industry: Due to stringent hygiene requirements, Lug Butterfly Valves made from stainless steel are often employed to handle process fluids in the food and beverage sectors, ensuring reliable flow control while adhering to sanitary standards.
• Chemical Processing: In the chemical processing industry, Lug Butterfly Valves manage the flow of corrosive and abrasive materials. Customizable materials allow for adaptability to specific chemical environments.
• Oil and Gas Industry: Within the oil and gas sectors, Lug Butterfly Valves are utilized in pipelines and drilling operations, where they regulate the flow of crude oil, natural gas, and other hydrocarbons.
• Fire Protection Systems: Lug Butterfly Valves are commonly used in fire protection systems, enabling quick shut-off mechanisms during emergencies. Their reliable functioning under various pressure conditions provides the necessary assurance in critical situations.
• Power Generation: In power generation—particularly in hydroelectric and thermal plants—Lug Butterfly Valves are employed as reliable flow control devices for cooling water, steam, and other fluids integral to energy generation processes.

Technical Parameters

• Size: The size of Lug Butterfly Valves ranges from small to large, depending on the specific application requirements. Common sizes include DN50, DN100, DN150, DN200, etc.
• Pressure Rating: Lug Butterfly Valves have different pressure ratings, such as PN10, PN16, PN25, etc., which indicate the maximum pressure they can withstand.
• Temperature Rating: The temperature rating of Lug Butterfly Valves varies depending on the materials used. For example, valves made of cast iron have a lower temperature rating than those made of stainless steel.
• Materials: The materials used in Lug Butterfly Valves include cast iron, carbon steel, stainless steel, brass, PVC, etc., which are chosen based on the service conditions, including pressure, temperature, and type of media.

Maintenance

• Regular Inspection: Regularly inspect the valve for any signs of wear, damage, or leakage. Check the disc, seals, and other components to ensure they are in good condition.
• Lubrication: Lubricate the valve stem and other moving parts regularly to reduce friction and ensure smooth operation.
• Cleaning: Clean the valve body and internal components regularly to remove any dirt or debris that may accumulate.
• Replacement of Seals: If the seals are damaged or worn, replace them promptly to maintain the valve's sealing performance.
• Testing: Periodically test the valve's operation to ensure it is functioning properly. This can include checking the opening and closing of the valve, as well as its throttling function.
