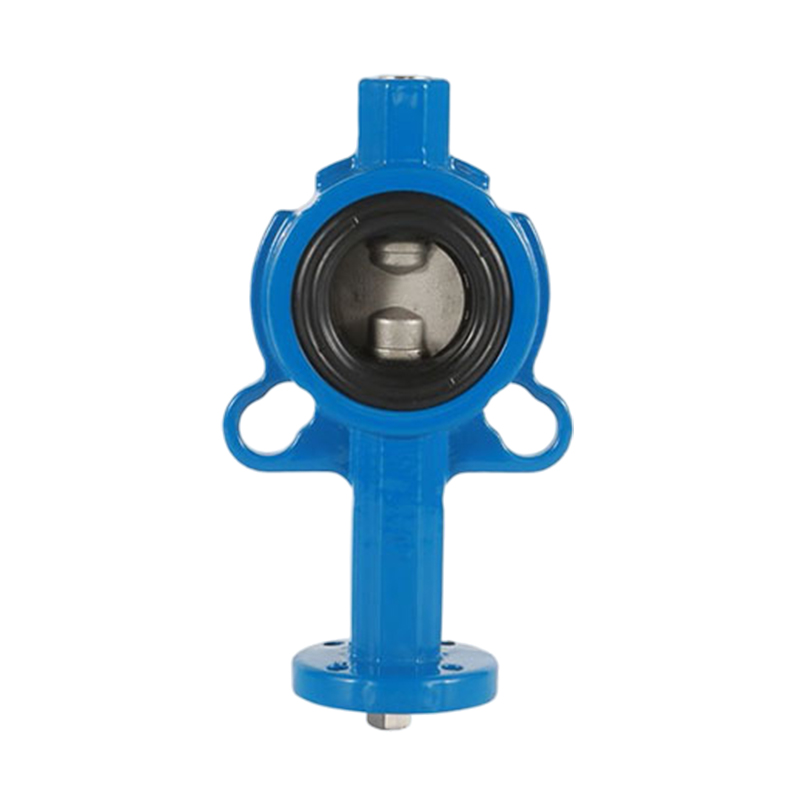

Space-Saving Design: Slim profile fits tightly between flanges, ideal for cramped installations.
Bidirectional Sealing: Resilient seats (EPDM, Viton) ensure zero leakage in both flow directions.
Low Torque Operation: Centerline disc alignment reduces operating torque by 30–40%.
High Pressure Tolerance: Rated for up to 250 PSI (ANSI 150#) and temperatures from -20°C to 150°C.
Corrosion Resistance: Materials like stainless steel (SS316) and epoxy-coated cast iron enhance longevity.
Fast Actuation: Compatible with manual levers, gearboxes, or actuators for quick open/close cycles.
✅ Cost-Effective: Lower material and installation costs compared to lug or flanged valves.
✅ Easy Installation: No nuts or threaded inserts—simply bolt between flanges.
✅ Lightweight: Reduces structural load on pipelines.
✅ Versatile Media Handling: Suitable for water, air, steam, and mild chemicals.
✅ Minimal Maintenance: Simple design with fewer wear-prone components.
Wafer centerline butterfly valves are ideal for:
Water Supply Systems: Pump stations, pipelines, and irrigation networks.
HVAC: Air handling units, chilled water systems, and energy management.
Fire Protection: Sprinkler systems and emergency shutoff lines.
Chemical Processing: Non-corrosive fluid transfer and dosing.
Food & Beverage: Sanitary processes with FDA-compliant seals.
Marine & Shipbuilding: Compact solutions for onboard piping.
| Parameter | Details |
|---|---|
| Size Range | 2" to 24" (DN50 to DN600) |
| Pressure Rating | ANSI 150#, PN10/16 |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Body Materials | Cast Iron, Ductile Iron, SS316, PVC |
| Disc Materials | Stainless Steel, Aluminum Bronze |
| Seat Materials | EPDM, NBR, Viton, PTFE |
| Standards | API 609, ISO 5752, AWWA C504 |
| Face-to-Face | Complies with ISO 5752 dimensions |
Regular Inspections: Check disc alignment, seat integrity, and flange bolts for tightness.
Cleaning: Flush the valve body to remove debris that may scratch the disc or seat.
Lubrication: Apply silicone-based grease to the stem every 6–12 months.
Seal Replacement: Replace elastomer seats every 3–5 years, depending on media compatibility.
Flange Inspection: Ensure gaskets are undamaged to prevent leaks.
This valve excels in cost efficiency, ease of installation, and reliable performance, making it a go-to solution for engineers prioritizing space and budget constraints. Its SEO-friendly keywords like "bidirectional sealing" and "low-torque butterfly valve" align with common industrial search queries, driving targeted traffic from industries like HVAC and water treatment.
By emphasizing technical specifications, maintenance best practices, and real-world applications, this content enhances Google visibility while addressing the needs of procurement managers, plant operators, and system designers.
Tags: #ButterflyValve #WaferValve #HVAC #WaterSupply #FireProtection #IndustrialValves
